- P/N:CM-BP93811
- Magnetic force: 5 N，support upgrade
- Rated Voltage&Current: 5 V,2 A, faster recharge
- Life test: 20,000 cycles,100% open & short test
- Environment: anti-corrosion,48 hours salt-spray test
- Pass Rohs, reach, HF, environmental protection

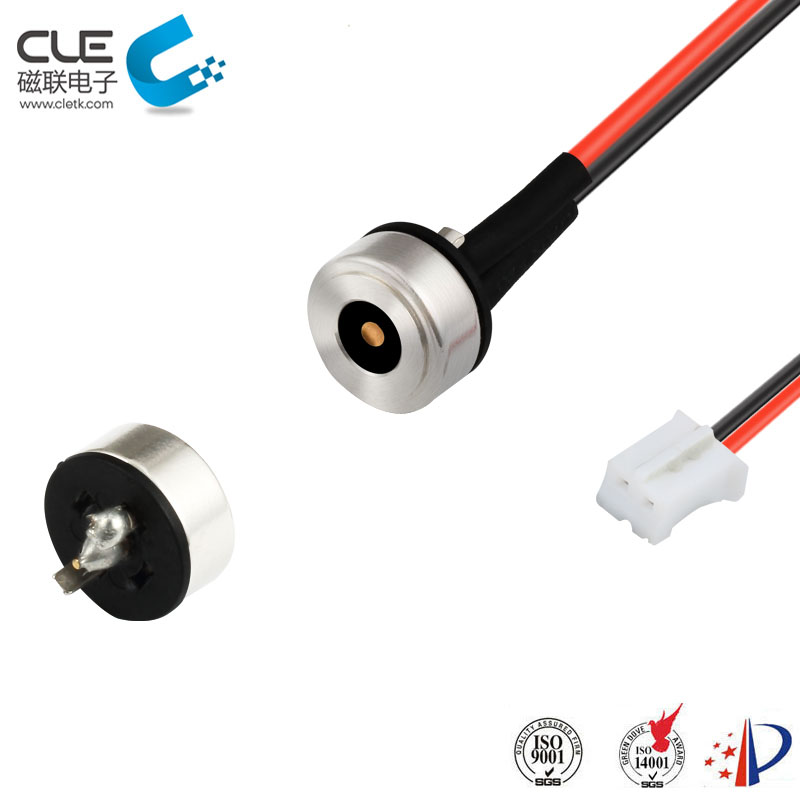

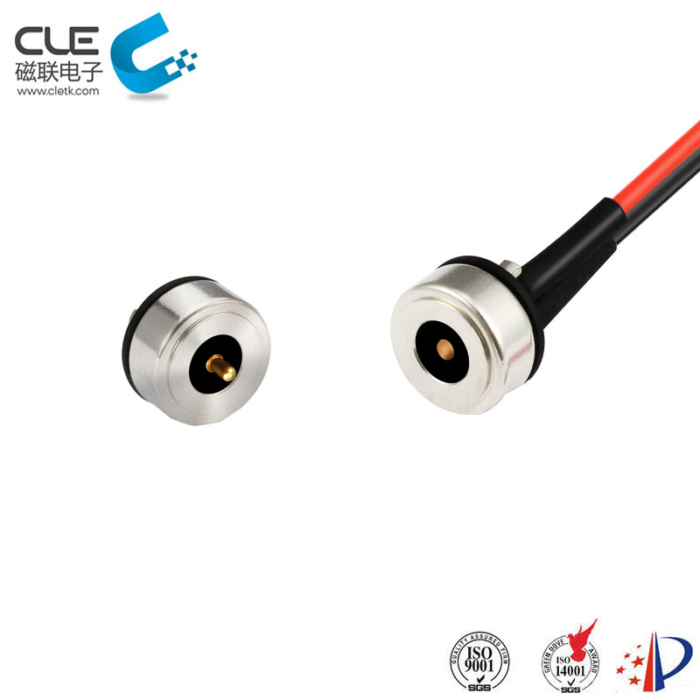

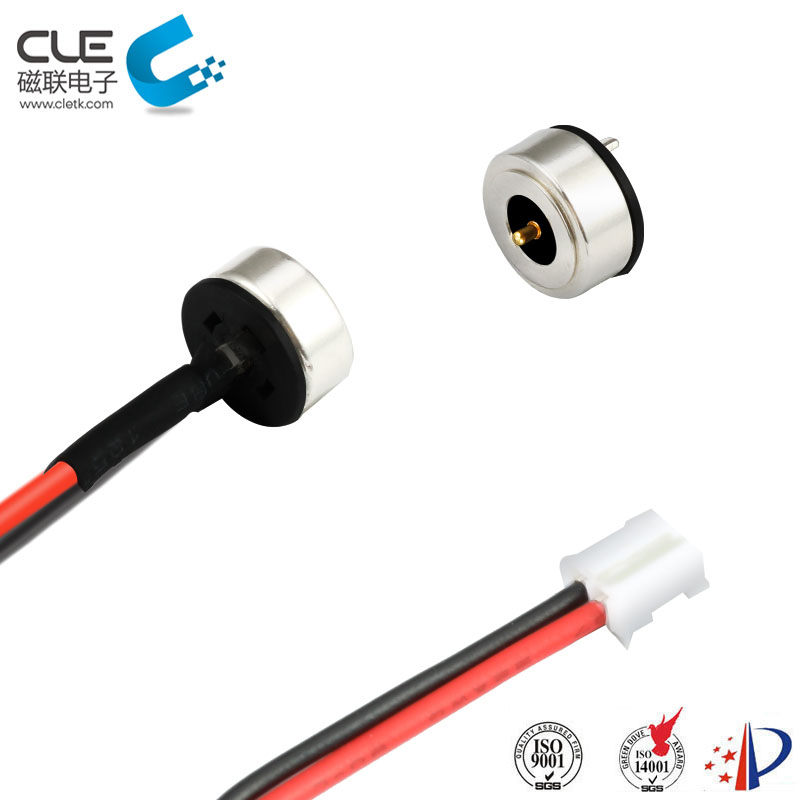

[CM-BP93811] Magnetic pogo pin male & female connector for bike light
Description
Magnetic pogo pin male & female connector for bike light, CLE is professional manufacture who is well doing ODM & OEM magnetic connectors service in this field for over 6 years. Our magnetic products are for worldwide customer in market. it has unique shape and small body,easy to operate.The magnetic products can achieved automatic adsorption when you want to give the device charging,and protect your device.
Female Part- – –Specification of Magnetic pogo pin male & female connector for bike light
| Products | Magnetic pogo pin male & female connector for bike light |
| Model No. | M-BP14201 |
| Voltage & Current | 24 V, 5 A |
| Plastic Core | HTN plastic (265°C) UL 94 V-0 |
| Pins | Copper,phosphor & beryllium copper, SUS |
| Gold-plating over Ni | |
| Environment | Anti-corrosion,48 hours salt-spray test |
| Installation | Screw fixation,solder,structure limit |
| Certification | RoHs, Reach, HF |
| Application | Bike light |
| Downloaded | Drawing |
Attention:
1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)
2.Magnet exist magnetic field interference
Male Part- – –Specification of Magnetic pogo pin male & female connector for bike light
| Products | Magnetic pogo pin male & female connector for bike light |
| Model No. | CM-BP93811 |
| Voltage & Current | 12 V, 5 A |
| Cable Shape | Round cable, flat cable |
| Material | PVC, TPE, Silica gel |
| Cable End | USB, JST,Adapter, Open circuit |
| Certification | RoHs, Reach, HF |
| Application | Outdoor headlight |
| Downloaded | Drawing |
Attention:
1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)
2.Magnet exist magnetic field interference
3.Can design short-circuit protection
CLE Standard
1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .
CLE Strength
1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.
2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.
3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.
4.CLE have 6 years experience of R&D magnetic connector, nearly 50 products in many areas of successful application development experience; products related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.
