- P/N: CXA-0075
- Magnetic force: 9N (horizontal position connection)
- Rated Voltage&Current: DC 12 V，2 A，faster recharge
- Life test: 20,000 cycles
- Pass Rohs, reach, HF, environmental protection

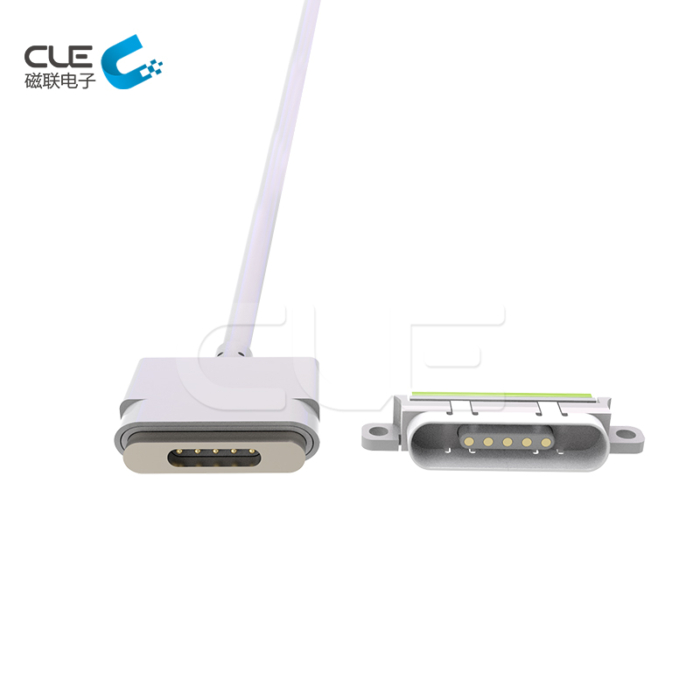

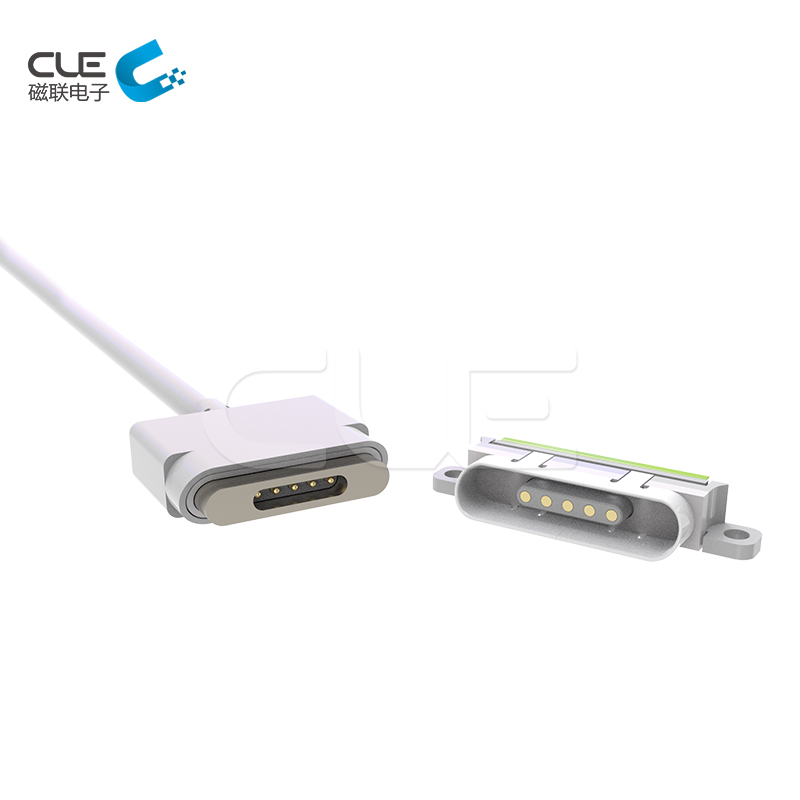

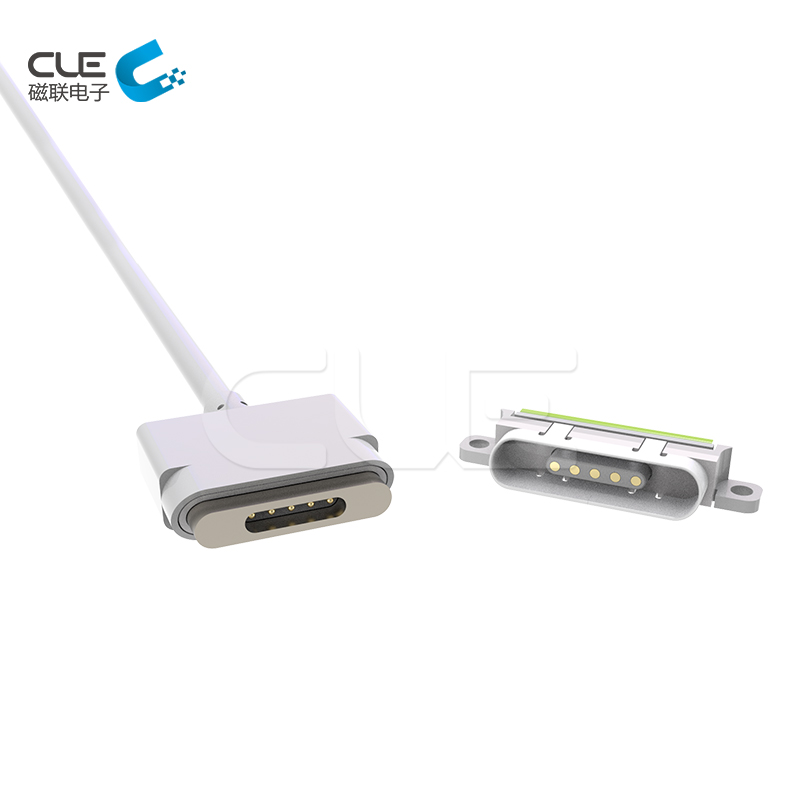

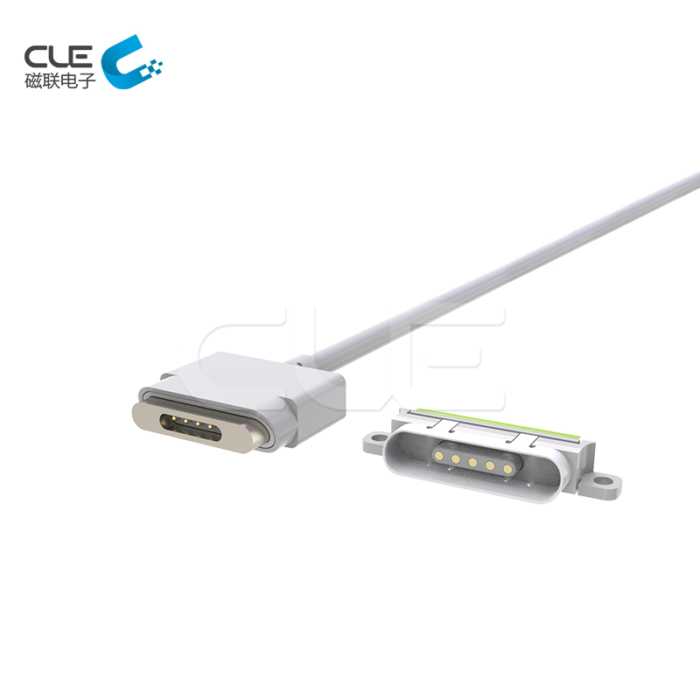

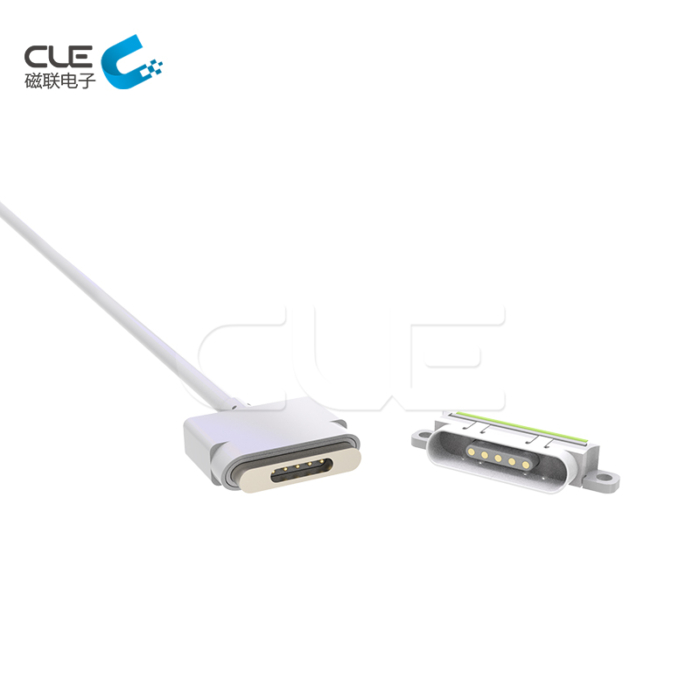

[CMA-0075] Male and female electrical connectors with magnetic cable
Description
Male and female electrical connectors with magnetic cable. CLE manufacturer of male and female electrical cable connectors,The magnetic connector design of an LED through hole, green light docked in the USB side when the lights.
Female Part- – –Specification of Male and female electrical connectors with magnetic cable
| Products | Male and female electrical connectors with magnetic cable |
| Model No. | MFA-0059 |
| Voltage & Current | 12 V,2 A |
| Plastic Core | HTN plastic (265°C) UL 94 V-0 |
| Pins | Copper,phosphor & beryllium copper, SUS |
| Gold-plating over Ni | |
| Environment | Anti-corrosion,48 hours salt-spray test |
| Installation | Screw fixation,solder,structure limit |
| Certification | RoHs, Reach, HF |
| Application | Phone |
| Downloaded | Drawing |
Attention:
1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)
2.Magnet exist magnetic field interference
Male Part- – –Specification of Male and female electrical connectors with magnetic cable
| Products | Male and female electrical connectors with magnetic cable |
| Model No. | CMA-0075 |
| Voltage & Current | 12 V, 2 A |
| Cable Shape | Round cable, flat cable |
| Material | PVC, TPE, Silica gel |
| Cable End | USB, JST,Adapter, Open circuit |
| Certification | RoHs, Reach, HF |
| Application | Phone |
| Downloaded | Drawing |
Attention:
1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)
2.Magnet exist magnetic field interference
3.Can design short-circuit protection
CLE Standard
1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .
CLE Strength
1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.
2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.
3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.
4.CLE have 6 years experience of R&D magnetic connector, nearly 50 products in many areas of successful application development experience; products related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.
