- P/N: CXA-0033
- Magnetic force: 2.2N
- Rated Voltage&Current: DC 12 V, 2 A
- Life test: 20,000 cycles ,Long life
- Environment: anti-corrosion,48 hours salt-spray test
- Pass Rohs, reach, HF, environmental protection

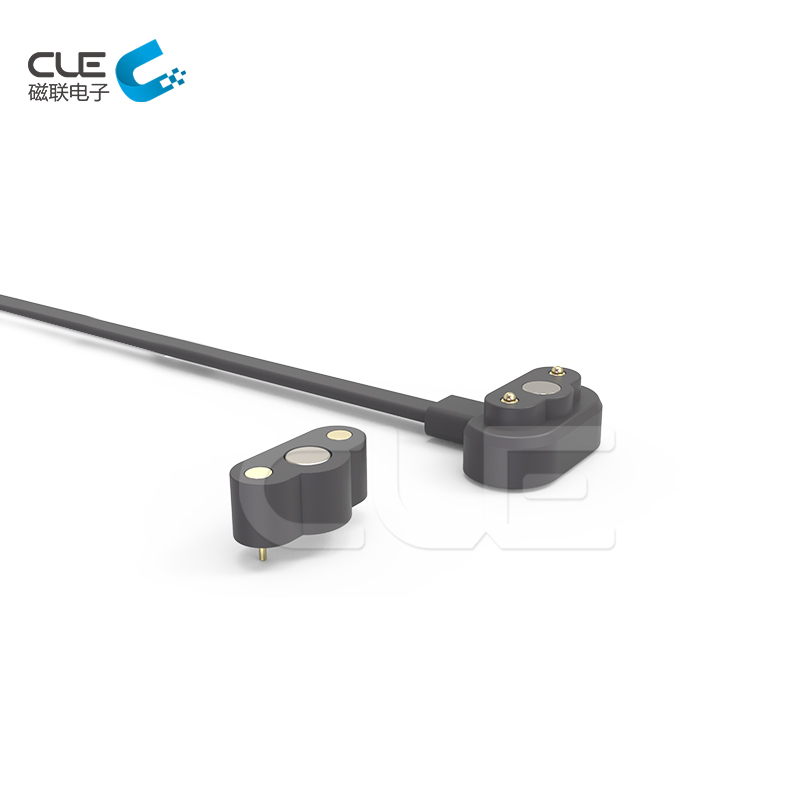

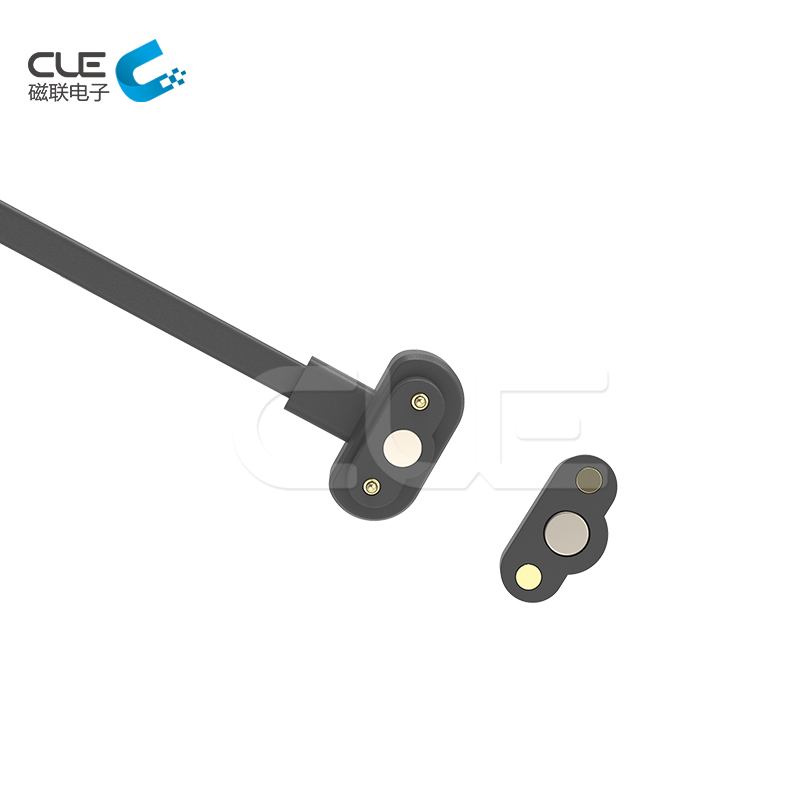

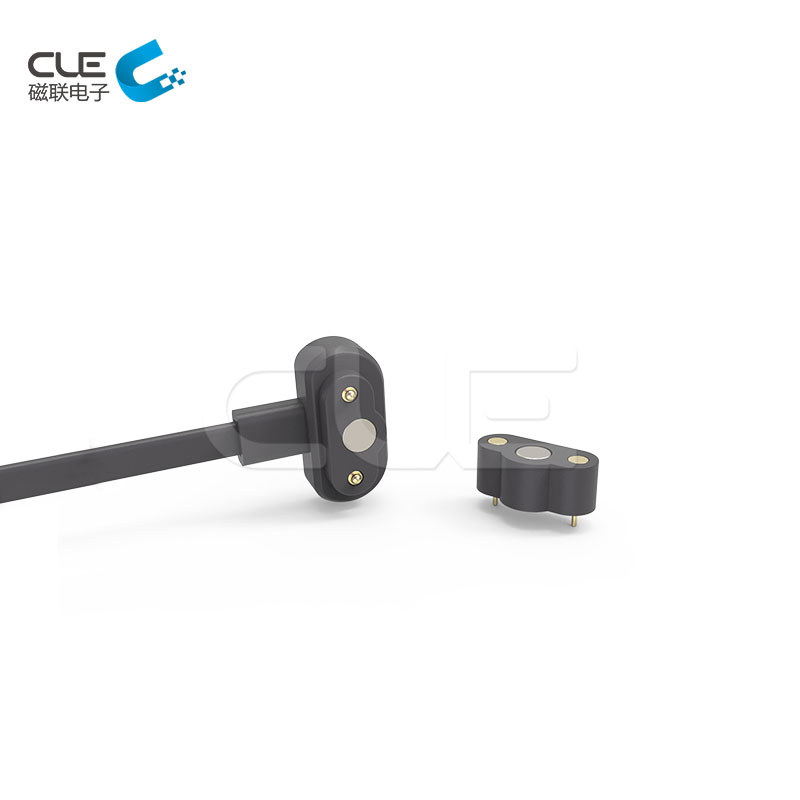

[CXA-0033] 2 pin male & female magnetic connections for smart watch
Description
2 pin male & female magnetic connections for smart watch. We have 14 years experience of magnetic connector and magnetic cable connector, it’s easy to attach the smartwatch, a completely new solution, out of the ordinary. High quality, long life. What we are after is a minimalist design, to give customers a new and distinctive experience. With the development of the society, what we aspire isn’t just a product, but a fast and more efficient connection to the magnetic connector.
Female Part- – –Specification of 2 pin male & female magnetic connections for smart watch
| Products | 2 pin male & female magnetic connections for smart watch |
| Model No. | MFA-0029 |
| Voltage & Current | 12 V, 2 A |
| Plastic Core | HTN plastic (265°C) UL 94 V-0 |
| Pins | Copper,phosphor & beryllium copper, SUS |
| Gold-plating over Ni | |
| Environment | Anti-corrosion,48 hours salt-spray test |
| Installation | Screw fixation,solder,structure limit |
| Certification | RoHs, Reach, HF |
| Application | Smart watch |
| Downloaded | Drawing |
Attention:
1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)
2.Magnet exist magnetic field interference
Male Part- – –Specification of 2 pin male & female magnetic connections for smart watch
| Products | 2 pin male & female magnetic connections for smart watch |
| Model No. | CMA-0033 |
| Voltage & Current | 12 V, 2 A |
| Cable Shape | Round cable, flat cable |
| Material | PVC, TPE, Silica gel |
| Cable End | USB, JST,Adapter, Open circuit |
| Certification | RoHs, Reach, HF |
| Application | Smart watch |
| Downloaded | Drawing |
Attention:
1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)
2.Magnet exist magnetic field interference
3.Can design short-circuit protection
CLE Standard
1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .
CLE Strength
1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.
2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.
3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.
4.CLE have 6 years experience of R&D magnetic connector, nearly 50 products in many areas of successful application development experience; products related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.
