- P/N: MXA-0053
- Magnetic force 8 N
- Rated Voltage&Current: DC12V, 2 A
- Life test: 20,000 cycles
- Environment: anti-corrosion,48 hours salt-spray test
- Pass Rohs, reach, HF, environmental protectionl

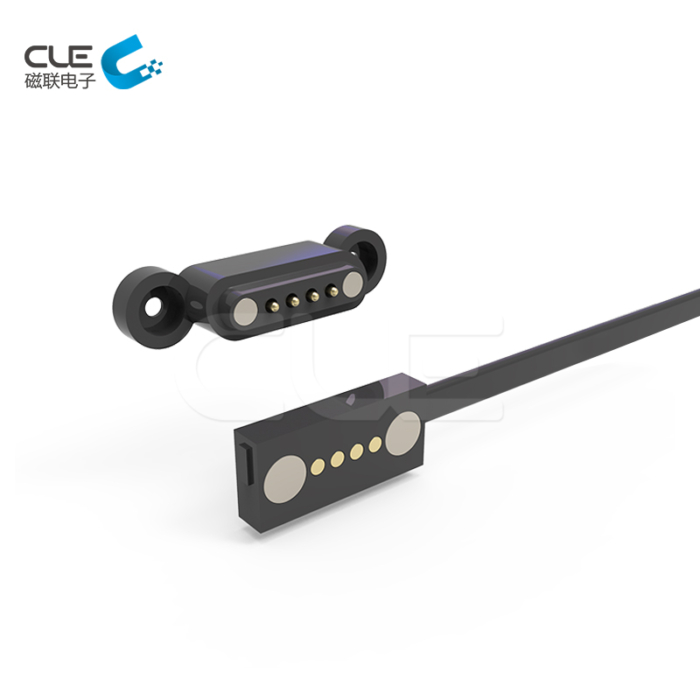

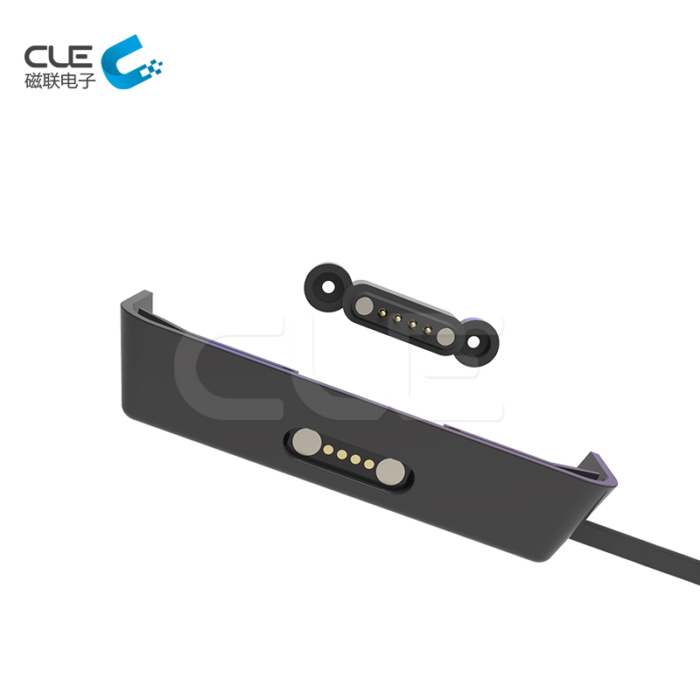

[MXA-0053] 4 Pin male and female magnetic battery charger cable connector
Description
4 Pin male and female magnetic battery charger cable connector. CLE main product is magnetic connector and magnetic cable connector. 4pin magnetic battery charger usually use to charger on portable source. Different from traditional connectors charging way，CLE ‘s magnetic batter charger cable connector makes the connection safer and more efficient by automatic adsorption.
Male Part- – –Specification of 4 Pin male and female magnetic battery charger cable connector
| Products | 4 Pin male and female magnetic battery charger cable connectortor |
| Model No. | MXA-0053 |
| Voltage & Current | 12 V, 5 A |
| Plastic Core | HTN plastic (265°C) UL 94 V-0 |
| Pins | Copper,phosphor & beryllium copper, SUS |
| Gold-plating over Ni | |
| Environment | Anti-corrosion,48 hours salt-spray test |
| Installation | Screw fixation,solder,structure limit |
| Certification | RoHs, Reach, HF |
| Application | Portable source |
| Downloaded | Drawing |
Attention:
1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)
2.Magnet exist magnetic field interference
Female Part- – –Specification of Magnetic wire connectors with 2 pin usb magnetic connector
| Products | Custom magnetic pins 4 pin magnetic usb cable connector |
| Model No. | CM-BP67531 |
| Voltage & Current | 12V, 5 A |
| Cable Shape | Round cable, flat cable |
| Material | PVC, TPE, Silica gel |
| Cable End | USB, JST,Adapter, Open circuit |
| Certification | RoHs, Reach, HF |
| Application | Portable source |
| Downloaded | Drawing |
Attention:
1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)
2.Magnet exist magnetic field interference
3.Can design short-circuit protection
CLE Standard
1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .
CLE Strength
1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.
2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.
3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.
4.CLE have 6 years experience of R&D magnetic connector, nearly 50 products in many areas of successful application development experience; products related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.
