- P/N:CM-BP94111
- Magnetic force: 3 N，support upgrade
- Rated Voltage&Current: 12 V, 2 A, faster recharge
- Life test: 100,000 cycles,100% open & short test
- Environment: anti-corrosion,48 hours salt-spray test
- Pass Rohs, reach, HF, environmental protection

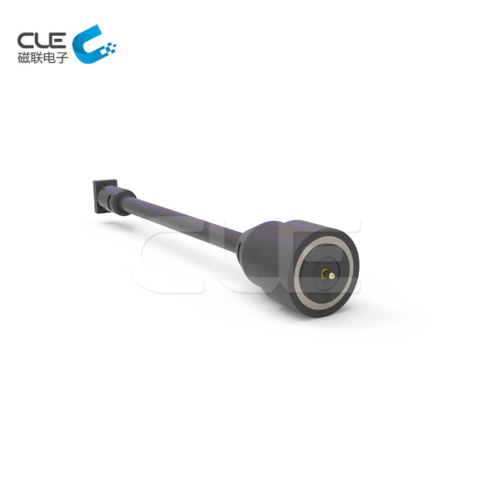

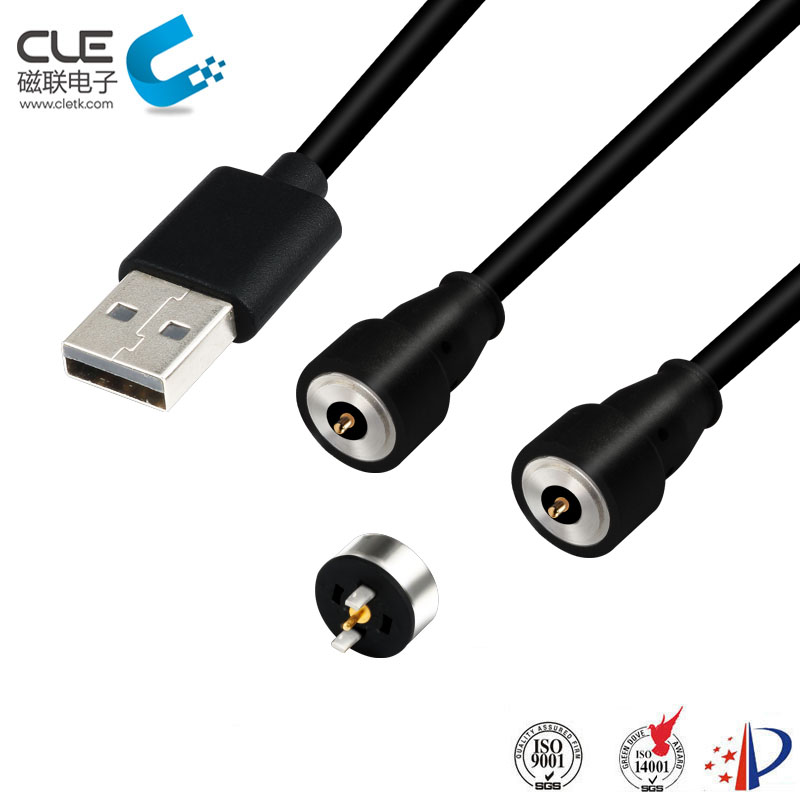

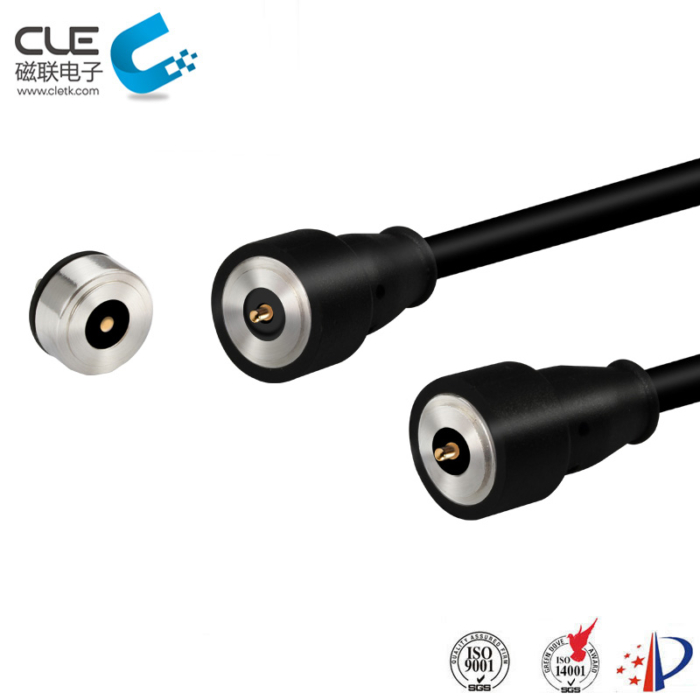

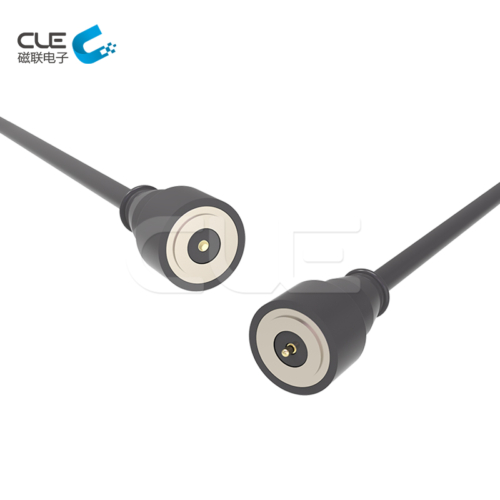

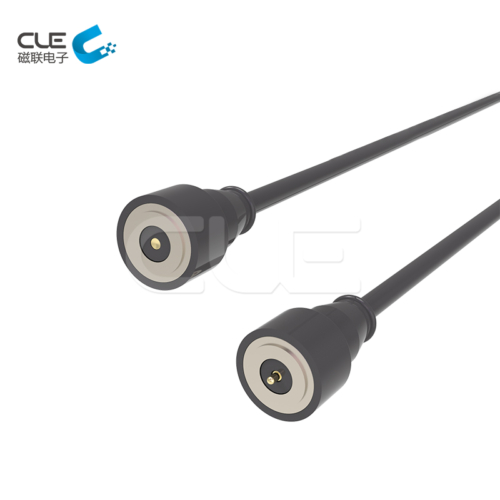

[CM-BP94111] Custom male and female magnetic usb cable for smart shoes
Description
Custom male and female magnetic usb cable for smart shoes. CLE has over 6 years of magnetic connector and magnetic cable connector experience,we are a professional manufacturer in global market.This is a unique design in order to fulfilled customers.The magnetic product’s overall size is compact and precise and the magnetic pogo pin have a excellent electric conductivity,not easily corroded in a severe environment .
Female Part- – –Specification of Custom male and female magnetic usb cable for smart shoes
| Products | Custom male and female magnetic usb cable for smart shoes |
| Model No. | M-BP14202 |
| Voltage & Current | 24 V, 5 A |
| Plastic Core | HTN plastic (265°C) UL 94 V-0 |
| Pins | Copper,phosphor & beryllium copper, SUS |
| Gold-plating over Ni | |
| Environment | Anti-corrosion,48 hours salt-spray test |
| Installation | Screw fixation,solder,structure limit |
| Certification | RoHs, Reach, HF |
| Application | Smart shoes |
| Downloaded | Drawing |
Attention:
1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)
2.Magnet exist magnetic field interference
Male Part- – –Specification of Custom male and female magnetic usb cable for smart shoes
| Products | Custom male and female magnetic usb cable for smart shoes |
| Model No. | CM-BP94111 |
| Voltage & Current | 12 V, 2 A |
| Cable Shape | Round cable, flat cable |
| Material | PVC, TPE, Silica gel |
| Cable End | USB, JST,Adapter, Open circuit |
| Certification | RoHs, Reach, HF |
| Application | Smart shoes |
| Downloaded | Drawing |
Attention:
1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)
2.Magnet exist magnetic field interference
3.Can design short-circuit protection
CLE Standard
1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .
CLE Strength
1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.
2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.
3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.
4.CLE have 6 years experience of R&D magnetic connector, nearly 50 products in many areas of successful application development experience; products related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.
