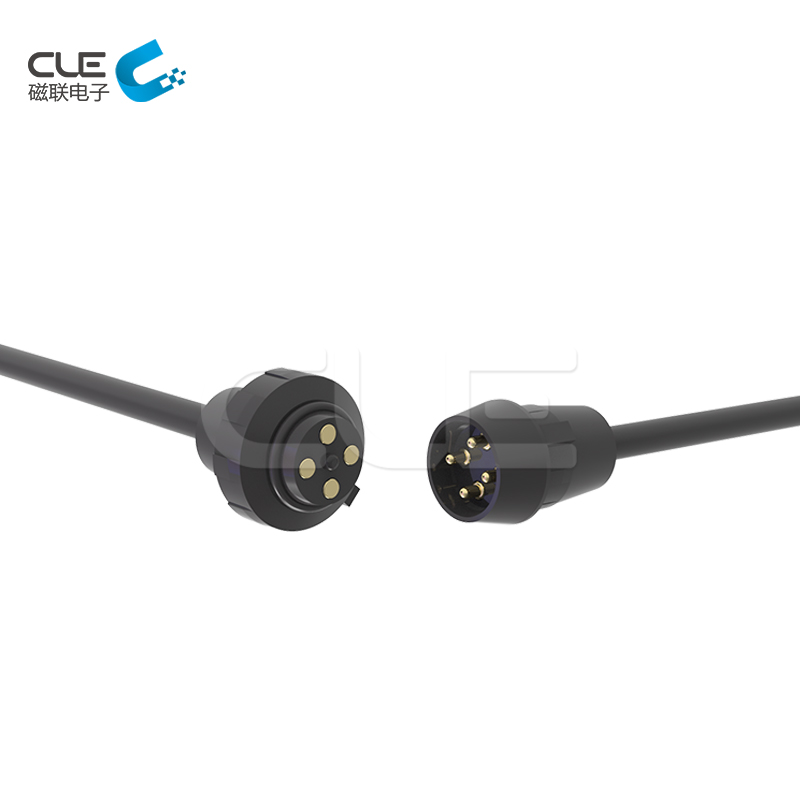

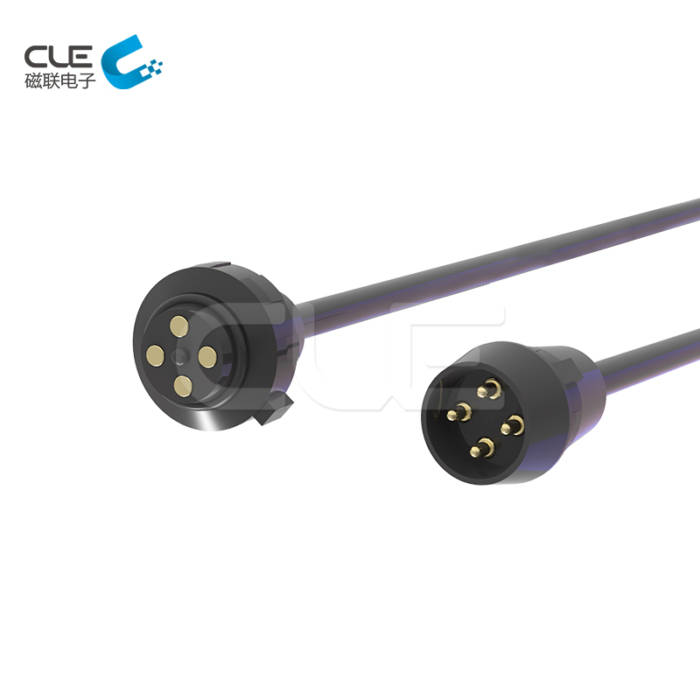

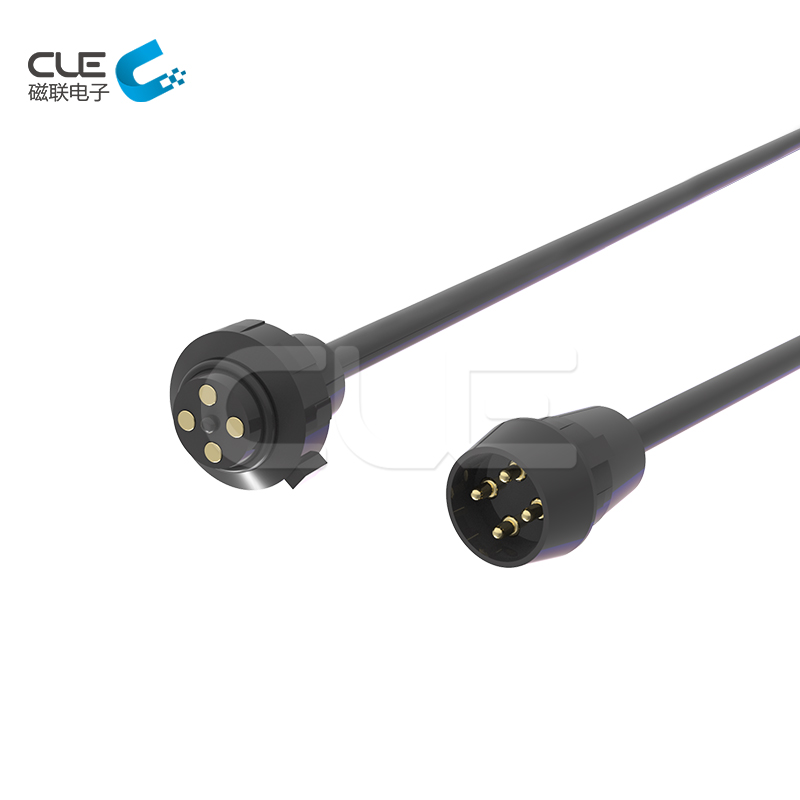

[CXA-0040] 4Pin cable connector adapter for converter

[CXA-0040] 4Pin cable connector adapter for converter

  • P/N: CXA-0040
  • Rated Voltage&Current: DC 12 V,1 A,faster recharge
  • Life test: 20,000 cycles
  • Environment: anti-corrosion,48 hours salt-spray test
  • Pass Rohs, reach, HF, environmental protect
Inquiry Now

Description

4Pin cable connector adapter for converter,CLE have over 6 years experience of magnetic cable connector .we have been devoted to providing better solutions for customers.The 4pin cable connector can not only charging , but also be used converter. It has a round type of shape and easy carry ,Pass HF, RoHS Directive-compliant, REACH standards.

Female Part- – –Specification of  4Pin cable connector adapter for converter

Products 4Pin cable connector adapter for converter
 Model No. MMA-0034
Voltage & Current  12 V, 1 A
Plastic Core HTN plastic (265°C) UL 94 V-0
Pins Copper,phosphor & beryllium copper, SUS
Gold-plating over Ni
Environment Anti-corrosion,48 hours salt-spray test
Installation Screw fixation,solder,structure limit
Certification RoHs, Reach, HF
Application
 Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

Male Part- – –Specification of  4Pin cable connector adapter for converter

Products 4Pin cable connector adapter for converter
Model No. CFA-0040
Voltage & Current 12 V, 1 A
Cable Shape Round cable, flat cable
Material PVC, TPE, Silica gel
Cable End USB, JST,Adapter, Open circuit
Certification RoHs, Reach, HF
Application
Downloaded Drawing

 Attention:

1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)

2.Magnet exist magnetic field interference

3.Can design short-circuit protection



CLE Standard

1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .

CLE Strength

1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.

2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.

3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.

4.CLE have 6 years experience of R&D magnetic connector, nearly 50 products in  many areas of successful application development experience; products  related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.
