- P/N:CM-BP73211
- Magnetic force: 5 N，support upgrade
- Rated Voltage&Current: 5 V,2 A, faster recharge
- Life test: 50,000 cycles,100% open & short test
- Environment: anti-corrosion,48 hours salt-spray test
- Pass Rohs, reach, HF, environmental protection

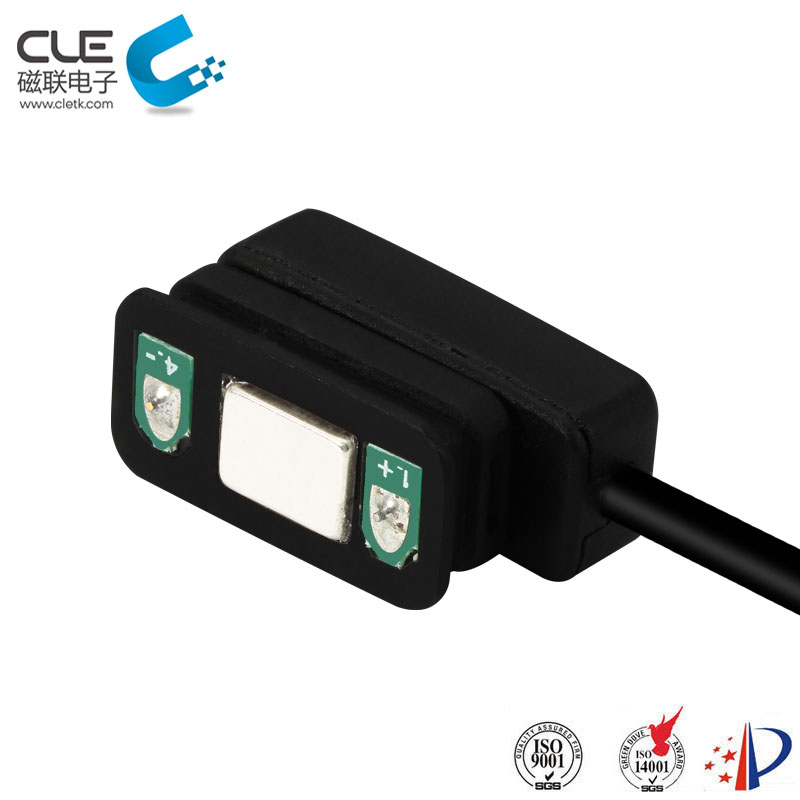

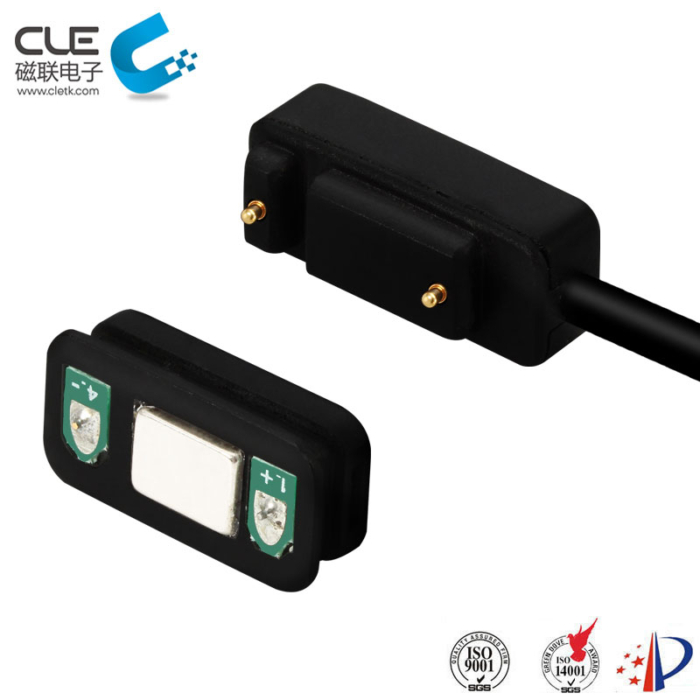

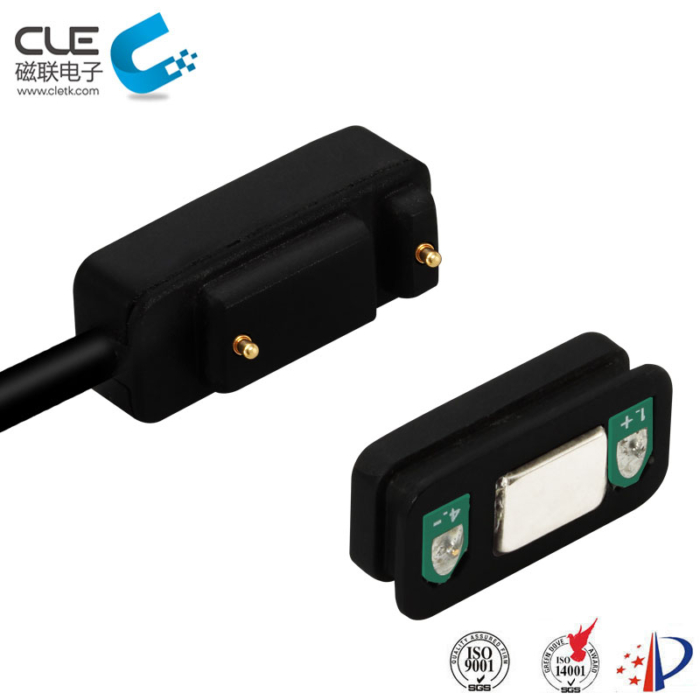

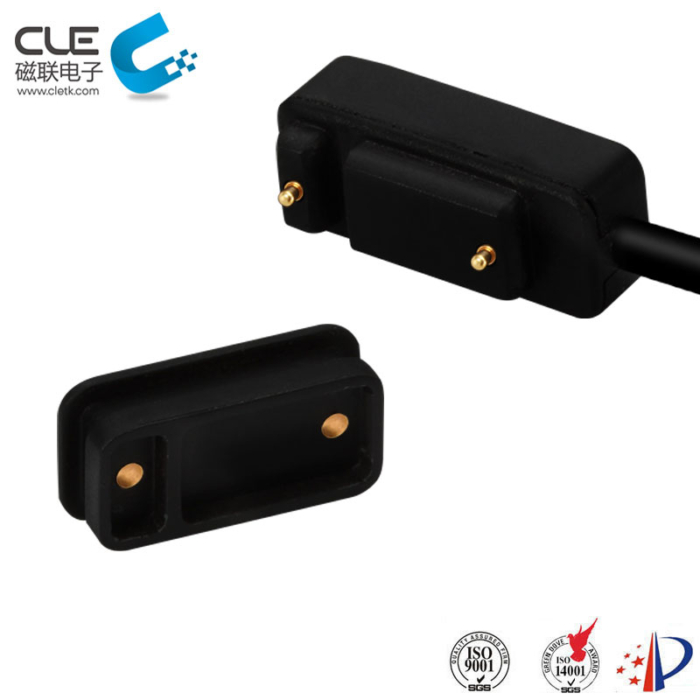

[CM-BP73211] Waterproof magnetic pogo pin usb connector for outdoor headlight
Description
Waterproof magnetic pogo pin usb connector for outdoor headlight，The female is made of high waterproof technology,it can protect your equipment. CLE is professional manufacturer of global sales magnetic connector.We offer a range of magnetic products for customers.
Female Part- – –Specification of Waterproof magnetic pogo pin usb connector for outdoor headlight
| Products | Waterproof magnetic pogo pin usb connector for outdoor headlight |
| Model No. | M-BP73211 |
| Voltage & Current | 5 V, 2 A |
| Plastic Core | HTN plastic (265°C) UL 94 V-0 |
| Pins | Copper,phosphor & beryllium copper, SUS |
| Gold-plating over Ni | |
| Environment | Anti-corrosion,48 hours salt-spray test |
| Installation | Screw fixation,solder,structure limit |
| Certification | RoHs, Reach, HF |
| Application | Outdoor headlight |
| Downloaded | Drawing |
Attention:
1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)
2.Magnet exist magnetic field interference
Male Part- – –Specification of Waterproof magnetic pogo pin usb connector for outdoor headlight
| Products | Waterproof magnetic pogo pin usb connector for outdoor headlight |
| Model No. | CM-BP73211 |
| Voltage & Current | 12 V, 5 A |
| Cable Shape | Round cable, flat cable |
| Material | PVC, TPE, Silica gel |
| Cable End | USB, JST,Adapter, Open circuit |
| Certification | RoHs, Reach, HF |
| Application | Outdoor headlight |
| Downloaded | Drawing |
Attention:
1.Magnet use NdFeB material, it’s can keep the magnetic force forever (except high temperature、broken、same pole connection)
2.Magnet exist magnetic field interference
3.Can design short-circuit protection
CLE Standard
1.Insist on original design, from ID to finish design,open molding and test、production Integration is complete .
CLE Strength
1.R & D team independent design and development capabilities, can be customized with product development; you just have an ID, we will do the left for you,free development,R&D time 3-5 working days.
2.Product projects of multi-program selection, round, square, rectangular, shaped connection with the flexible use of the way to achieve beautiful appearance, saving space, easy plug, magnetic force can achieve 1N to 30N.
3.Connection way:magnet to magnet,magnet to alloy,magnet to Iron sheets and so on,to meet different structure and application, avoid magnetic field interference, use NdFeB magnet, it’s can keep the magnetic force forever.
4.CLE have 6 years experience of R&D magnetic connector, nearly 50 products in many areas of successful application development experience; products related to medical, automotive, electrical, consumer electronics, intelligent wear equipment.
